200G PAM4 Series

Classification：200G PAM4 Series
Number of visits：second
Date of issue：2026-03-17 14:01:23

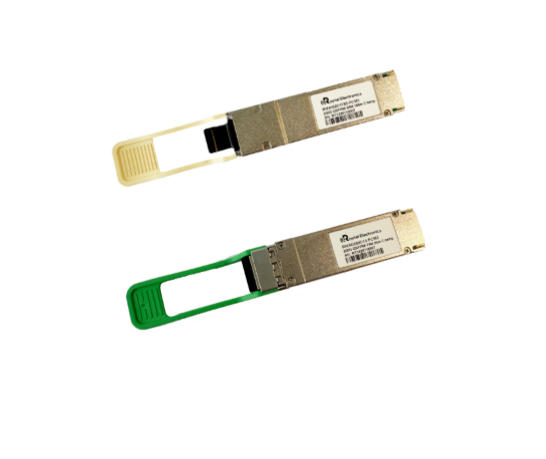

Raytel 200G PAM4 series transceivers are designed for high speed data connection ,such as Server to Leaf switch or Leaf to Spine switch in AI datacenter , switch to switch in High Performance Computing etc. The 200G SR4 PAM4 transceiver are incorporated with 850nm VCSEL and PD arrays. There is a low power consumption DSP inside the transceiver with the electrical and optical data rate are 53G PAM4 for each lane. The Optical interface is MPO-12 APC. The 200G FR4 series are based on Micro-Optics technology ,which are incorporated 4 high performance DFB lasers. There is a low power consumption DSP inside the transceiver with the electrical data rate is 53G PAM4 for each lane .

online inquiry

¨ 4 independent parallel optical lanes

¨ Support 4x50GbE/2x100GbE/1x200GbE

¨ 850nm VCSEL/PD based technology for 200G SR4

¨ Micro-Optics based technology for 200G FR4

¨ Positive power supply lines: 3.3 V

¨ Low power consumption

¨ QSFP56 MSA compliance

¨ ROHS 2.0 compliance
