Your current location ： Home >> Products >> 25G /40G/100G/200G/400G AOC Series
25G/40G/100G/200G/400G AOC Series

25G/40G/100G/200G/400G AOC Series

  • Classification：25G /40G/100G/200G/400G AOC Series
  • Number of visits：second
  • Date of issue：2026-03-17 14:12:06

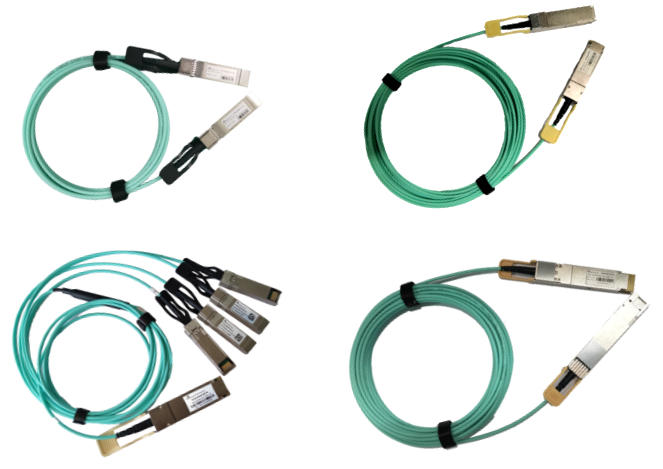

  • Raytel 25G/40G/100G/200G/400G Active Optical Cable (AOC) series are designed for high speed data connection ,such as server to TOR switch in datacenter , switch to switch in LAN etc. The series AOC modules are incorporated with 850nm VCSEL and PD with Chip on Board (COB) technology. The breakout AOC is also available for 100G/400G series. The 200G/400G AOC series are incorporated with 850nm VCSEL and PD arrays. There is a low power consumption DSP inside the transceiver with the electrical and optical data rate are 53G PAM4 for each lane.
online inquiry
  • Feature
  • Ordering information

¨ 850nm VCSEL/PD

¨ Chip On Board  technology

¨ High performance BER

¨ Positive power supply lines: 3.3 V

¨ Low Power consumption

¨ ROHS 2.0 compliance




Part Number

Description

Reach

Temp.


Wavelength

(nm)

Power Consumption (W)Each end

BER

RTFA25xxF85-PC

25G SFP28 AOC

1~100m

C

850

<1

1E-12

RTAA40xxF85-PC

40G QSFP+ AOC

1~100m

C

850

<1.5

1E-12

RTAAA0xxF85-PC

100G QSFP28 AOC

1~100m

C

850

<2

1E-12

RTBAA0xxF85-PC

100G QSFP28 to 4x25G SFP28 AOC

1~100m

C

850

<2

1E-12

RMAA2xxF85-PCM3

200G QSFP56 AOC

1~100m

C

850

<4

1E-6

RMQA4xxF85-PCM3

400G QDD AOC

1~100m

C

850

<8

1E-6

RMBA4xxF85-PCM3

400G QDD   to 2x200G QSFP56 AOC

1~100m

C

850

<8

         1E-6
